A53 Galvanized Steel Pipe
Galvanized steel pipe is a welded steel pipe with a hot-dip or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipelines in the petroleum industry, especially offshore oil fields, and oil heaters and condensation pipes for chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, trestle piles, and support pipes for mine tunnels, etc.
Inquiry Now →

Product Details

Galvanized steel pipe is a welded steel pipe with a hot-dip or electro-galvanized layer on the surface.  Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life.  Galvanized pipes are widely used.  In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipelines in the petroleum industry, especially offshore oil fields, and oil heaters and condensation pipes for chemical coking equipment.  Pipes for coolers, coal distillation washing oil exchangers, trestle piles, and support pipes for mine tunnels, etc.



OD(Outer Diameter) 15mm-168mm)
SizeWT(Wall Thickness)0.5-2.75mm.SCH10S,SCH40S,STDXS,SCH80.SCH160,XXS etc.

ZINC COATED 1)Pre-galvanized steel pipe:Z40-80g/m22)Hot dip galvanized steel pipe:Z200-520g/m2
MaterialQ195- Grade B,SS330,SPHC,S185Q215-Grade C,CS Type B,SS330,SPHCQ235- Grade D,SS400,S235JR,S235JO,S235J2Q345- SS500,ST52
StandardGB,JIS.DIN,AISI,ASTM
Section shapeRound/Square/Rectangular
TypeWelded Pipe
TechniqueElectronic Resistance Welded (ERW)Electronic Fusion Welded (EFW)Double Submerged Arc Welded (DSAW)
Welded Line TypeLongitudinal
Ends1)Plain2)Beveled3)Thread with Coupling or cap
End protector1) Plastic pipe cap2) Iron protector
Surface Treatment1)Bared2) Black Painted (varnish coating)Surface Treatment3) Galvanized4) With Oiled5) 3 PE,FBE,corrosion resistant coating
InspectionWith Hydraulic Testing Eddy Current ,Infrared Test
Class A test pressure4.83MPa-13.10Mpa

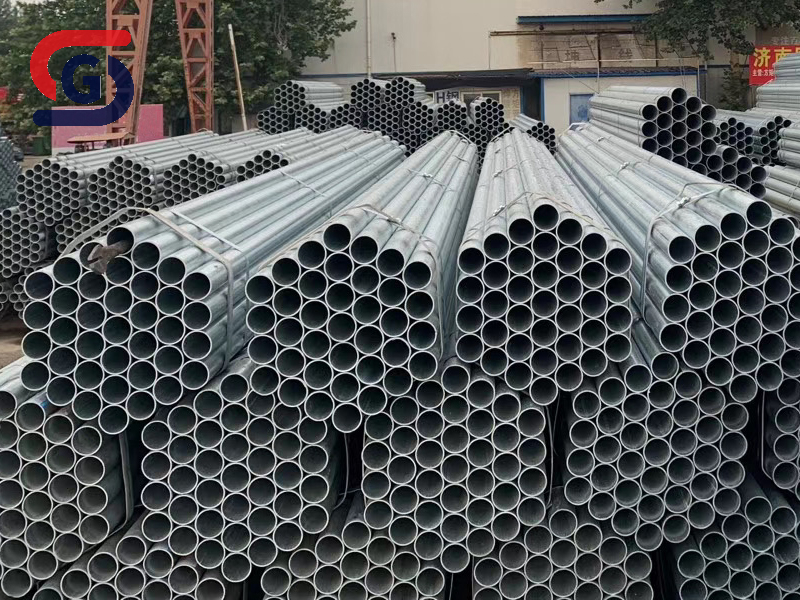

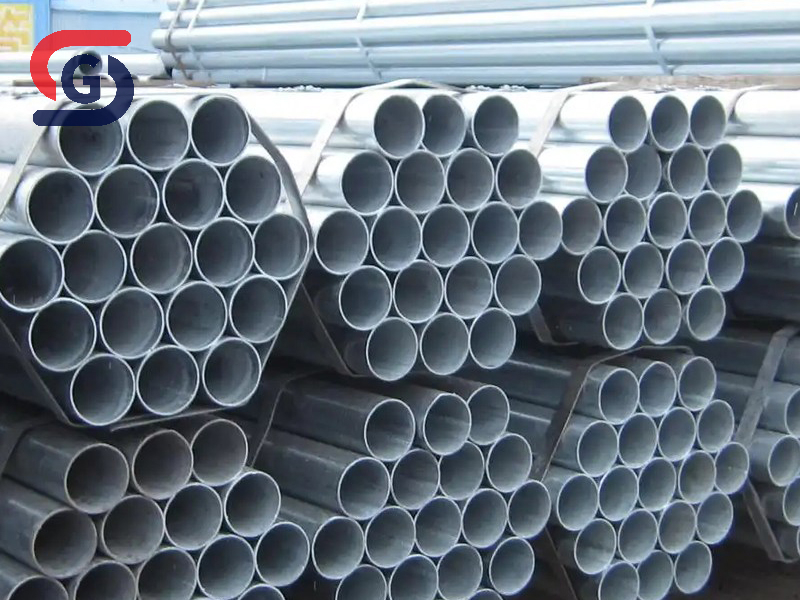

Product Show


Product Details

Standard sea shipping packaging or according to customer requirements.


FAQ

Q:How long is your delivery time?
A: Our daily inventory is more than 6000 tons, so for common product size, just need 5-7 work days from stocks; if the special size from new production, delivery 15-21 days.
Q:How many countries you already exported?
A:Our products are widely used more than 60 countries already mainly from Vietnam, Indonesia, Thailand, UAE, Iran, Saudi Arabia, Russia, Australia, Germany, UK, Moldova, Italy, Turkey, Chile, Uruguay, Paraguay, Mexico, Brazil, Argentina, Peru, America, Canada etc.
Q:What’s your supported standard of products?
A:We can supply BG/T; ASTM; EN/DIN; JIS and other common standards products. Customers can name their requests and we can supply accordingly.
Q:What’s your supported measurement and size?
A:For sheets and coils, we can support sizes in gauge, mm and inch/feet For pipes, we can support mm, SCH and DN
Q:What cash do you take?
A:We can accept USD and RMB for now
Q:What’s your payment term?
A:T/T, T/T + L/C, Paypal, etc.
Q:What’s your incoterm?
A:FOB, CIF, DDP and other incoterm the customers named.
Q:What’s your policy with dealers and wholesalers?
A:We have yearly plan for such customers and need to negotiate personally
